Vector Fields

Definition and Examples of Vector Fields

We have now seen many types of functions.  They are characterized by the domain and the range.  Below is a list of some of the functions that we have encountered so far.

Domain Range Name
R R One variable Function
R R2 Parametric Equations
R2 R Function of 2 Variables
R Vectors Vector Valued Function

By letting the domain be Rn and the range be n-dimensional vectors, we get a new type of functions called a vector field.



Definition of a Vector Field

A vector field is be a function where the domain is Rn and the range is n-dimensional vectors.



Example

An important vector field that we have already encountered is the gradient vector field.  Let f(x,y) be a differentiable function then the function that take a point (x0,y0) to gradf(x0,y0) is a vector field since the gradient of a function at a point is a vector.  For example, if

        f(x,y)  =  0.1xy - 0.2y

then

        gradf(x,y)  =  0.1yi + (0.1x - 0.2)j

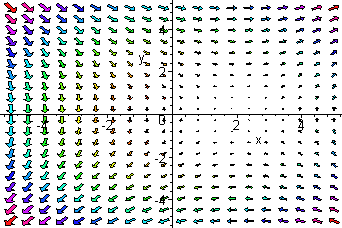

The sketch of the gradient is pictured below.



The best way to sketch a vector field is to use the help of a computer, however it is important to understand how they are sketched.  For this example, we pick a point, say (1,2) and plug it into the vector field

        gradf(1,2)  =  .2i - .1j

Next, sketch the vector that begins at (1,2) and ends at (1 + .2, .2 - .1).  Notice that when we sketch vector fields, we use the definition that involves two points rather than the definition that assumes all vectors emanate from the origin.



Example

In physics, many vector fields satisfy the inverse square law.  A vector field F satisfying the inverse square law has the property that if

        r  =  xi + yj + zj

and u is the unit vector in the direction of r (u  =  r/||r||), then



Examples of force fields that satisfy the inverse square law are gravitational force fields and electric force fields.  Below is a plot of a vector field that satisfies the inverse square law.



Notice that as the distance from the origin gets small, the vector become small quickly.  For gravity, this tells us that as we fly away from the earth, we experience less gravity, until it seems like weightlessness.

Other examples of vector fields that occur in nature include velocity fields.  For example, the currents in the ocean ensure movement of the water.  The if we sketch the velocity vector of at each point of the ocean, we get a vector field.  A similar velocity field is produced from wind in the atmosphere.


Conservative Vector Fields

Our first and most important example was the gradient vector field.  Can we go backwards?  That is, given a vector field F, can we construct a function f with the property that

        F  =  gradf

The answer to this question is only for some very special vector fields, which we call conservative.

Definition of a Conservative Vector Field

Let F be a vector field.  Then F is called conservative if there is a differentiable function f such that

               gradf  =  F

f is called the potential function for F.

Fortunately, we do not need to flounder about to determine if a vector field F is conservative.  We use the following argument.  If

        F  =  <M,N>

 is conservative, then

        <M,Q>  =  gradf  =  <fx,fy>

So that

        M  =  fx        and        N  =  fy

Now take partial derivatives with respect to y of the first equation and with respect to x of the second equation to get

        My  =  fxy        and        Nx  =  fyx

Since mixed partial derivative are the same (for nice functions) we get

        My  =  Nx

This turns out to be both a necessary and sufficient condition for a vector field to be conservative.

Theorem:  Testing for Conservativeness

If M and N have continuous first order partial derivatives, then the vector field

          F  =  Mi + Nj

is conservative if and only if

          My  =  Nx



Example

Determine which of the two vector fields are conservative

A.  F  =  3xyi - x2j

B.  G  =  (1 + 2xy)i + (x2 - 2)j



Solution

For part A. we find

        My  =  3x        Nx  =  -2x

Since they are not equal the vector field is not conservative.

For part B.  we find

         My  =  2x        Nx  =  2x

They are equal, so the vector field is conservative.



Once we know that a vector field is conservative, how do we find the potential function?  We investigate the relations

        M  =  fx        and      N  =  fy



Example

Find the potential function for the conservative vector field in the last example

        G  =  (1 + 2xy)i + (x2 - 2)j



Solution

We have

        M  =  1 + 2xy  =  fx

Integrating both sides with respect to x we get

        x + x2y + c(y)  =  f(x,y)

Notice that the constant of integration may involve y terms since we are treating y as a constant.  Now differentiate with respect to y to get

        x2 + c'(y)  =  fy  =  N  =  x2 - 2

Thus

        c'(y)  =  -2

Integrating with respect to y, we get

        c(y)  =  -2y

We do not need a constant of integration here since we just want "a" potential function not the general potential function.  Putting it all together, we get the potential function

        f(x,y)  =  x + x2y - 2y


The Curl of a Vector Field

If F is a vector field then we want to look at what operation we can do to it.  One such operation is called the Curl of F.  We define it as follows.

Curl of a Vector Field

If F is a differentiable vector field with

               F  =  Mi + Nj + Pk

then





Notice that for a two dimensional vector field, where there is only a k component for a cross product, that if the curl is zero then the vector field field is conservative.  Actually more is true.  Remembering that all second order partial derivatives are independent of order for nice functions, we have

Theorem

Let F be a three dimensional differentiable vector field with continuous partial derivatives.  Then

               Curl F  =  0

if and only if F is conservative



Example

Determine if the vector field

        F  =  yz2i + (xz2 + 2)j + (2xyz - 1)k

is conservative.  If it is, find a potential function.



Solution

We calculate



The vector field is conservative.  Now equate

        fx  =  yz2

and integrate to get

        f  =  xyz2 + c(y,z)

Notice the constant now depends on both y and z, since they were held constant when we integrated.  Now take a partial with respect to y to get

        xz2 + cy(y,z)  =  fy  =  xz2 + 2

Hence

        cy(y,z)  =  2

Integrate with respect to y to get

        c(y,z)  =  2y + c(z)

Notice that z is the only "constant" remaining.  We get

        f  =  xyz2 + 2y + c(z)

Now take a derivative with respect to z to get

        2xyz + c'(z)  =  fz  =  2xyz - 1

so that

        c'(z)  =  -1

finally integrate to get

        c(z)  =  -z

The potential function is

        f(x,y,z)  =  xyz2 + 2y - z


The Divergence of a Vector Field

The curl of a vector field was defined as the cross product of the "dell" operator with the vector field.  A curious student may try to take a dot product instead and see where it leads.

Definition of the Divergence of a Vector Field

If F is a differentiable vector field with

               F  =  Mi + Nj + Pk

then





Notice that the curl of a vector field is a vector field, while the divergence of a vector field is a real valued function.



Example

Find the divergence of the vector field

   F  =  (x-3y)i + (x2z2 + cos(z3))j + (xyz2)k



Solution

We just take the three partial derivatives and add them up

        (1) + (0) + (2xyz)  =  1 + 2xyz
