Shifting and Reflecting

1. Six Basic Functions

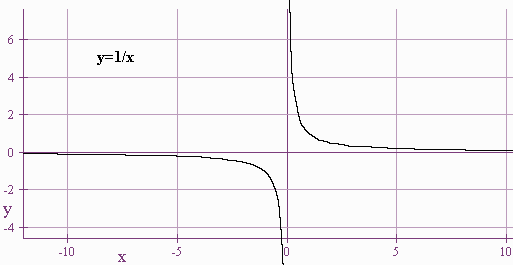

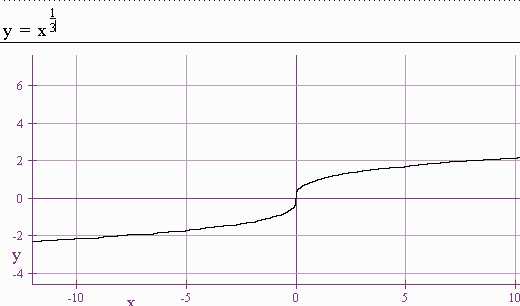

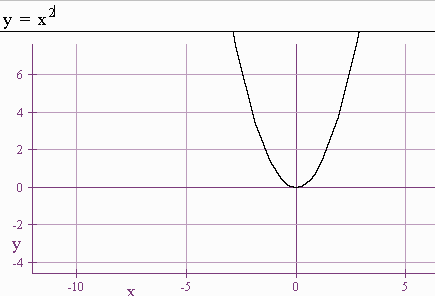

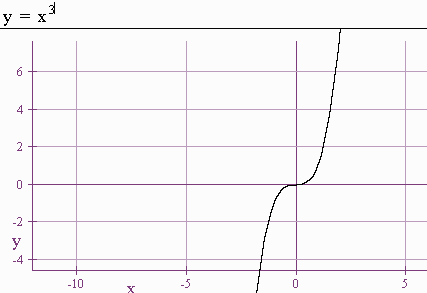

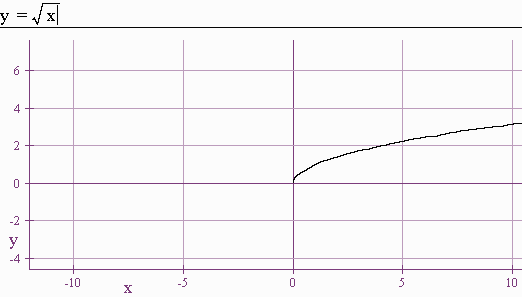

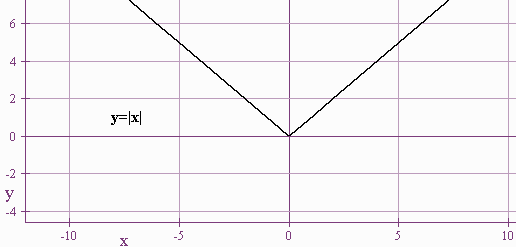

   Below are six basic functions:



   1.





   2.




   3.




   4.




   5.





   6.


      Memorize the shapes of these functions.

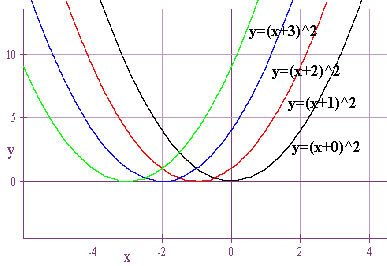

2. Horizontal Shifting

    Consider the graphs


   y =


   1. (x + 0)²


   2. (x + 1)²


   3. (x + 2)²


   4. (x + 3)³











   Exercise


   Use the list features of a calculator to sketch the graph of

           y = 1/[x - {0,1,2,3}]




   Rule1:  f(x - a) = f(x) shifted a units to the right. Rule 2:  f(x + a) = f(x) shifted a units to the left

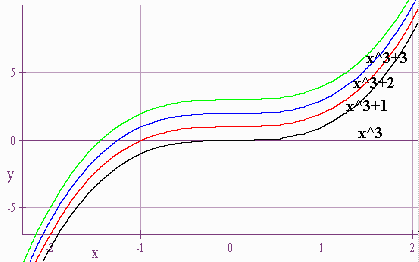

3. Vertical Shifting

   Consider the graphs


   y =


   1. x³


   2. x³ + 1


   3. x³ + 2


   4. x³ + 3











   Exercise


   Use the list features of a calculator to sketch the graph of

           y = x³  - {0,1,2,3}




   Rule 3:  f(x ) + a = f(x) shifted a units up. Rule 4:  f(x) - a = f(x) shifted a units down.




4. Reflecting About the x-axis

   Consider the graphs

    y = x²  and y = -x²




   Rule 5:  -f(x ) = f(x)  reflected about the x-axis.





5. Reflecting About the y-axis.

   Exercise:

   Use the calculator to graph



   and




   Rule 6:  f(-x ) = f(x) reflected about the y-axis.




6. Stretching and Compressing

   Exercises

   Graph the following



   1. y = {1,2,3,4}x³


   2. y = {1/2,1/3,1/4,1/5}x³





   Rule 7:  cf(x ) = f(x) (for c > 1) stretched vertically. Rule 8:  cf(x ) = f(x) (c < 1) compressed vertically.

We will do some examples (including the graph of the winnings for the gambler and for the casino.

Exercises:  Graph the following

1.  y = x² - 10


2. y = sqrt(x - 2)


3.  y = -|x - 5| + 3



For an interactive investigation of the shifting rules go to

http://mathcsjava.emporia.edu/~greenlar/Shifter/Shifter1.html

7. Increasing and Decreasing Functions

   A function is called increasing if as an object moves from left to right, it is moving upwards along the graph.

           If

           x < y

   then

           f(x) < f(y)

   A function is called decreasing if as an object moves from left to right, it is moving downwards along the graph.

   If

           x <  y

   then

           f(x) > f(y)

   Example:

   The curve

           y = x²

   is increasing on (0, ) and decreasing on (-,0)
